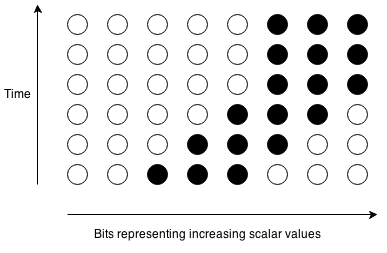

name: inverse layout: true class: center, middle, inverse --- # Random Distributed Scalar Encoder Chetan Surpur, Numenta .footnote[As used in [NuPIC](https://github.com/numenta/nupic)] --- layout: false # Agenda 1. Introduction 2. Review: Basic Scalar Encoder 3. Why Random Distributed Scalar Encoder? 4. Objectives 5. Algorithm w/ Example 6. Parameters 7. Intuitions 8. Results 9. Q&A --- class: center # Basic Scalar Encoder ![Example](/images/slides/numenta-rdse/basic-scalar-encoder.png) --- # Why RDSE? - Basic Scalar Encoder saturates representation of input at edges - Have to decide on min / max up front - Can't change the range of the encoder at run-time, or learning will be lost --- # Objectives of a Scalar Encoder - Represent each bucket with a number of bits - Adjacent buckets should share many bits - Non-adjacent buckets shouldn't share any bits --- # Algorithm - For the first bucket, select a number of bits randomly - Remember which bits were assigned to which bucket - When moving along the scalar number line, and a new bucket is needed: - Look up which bits were assigned to the previous bucket (let's call it P) - Make a new set of bits to represent the new bucket that has all but one of the bits in P and one randomly* selected bit not in P - When assigning a scalar to an existing bucket, just look up which bits were assigned to the target bucket .footnote[_* Some bits are excluded from the selection process as an optimization_] --- class: center # RDSE Example ![Example](/images/slides/numenta-rdse/random-distributed-scalar-encoder.png) --- # Parameters - 'n' is total number of available bits - 'w' is number of bits representing each bucket (width) - 'r' is how "wide" a bucket is (resolution) --- # Intuitions - Each bit contributes to representing multiple adjacent buckets - As you create more and more buckets, the chances of selecting a bit for a new bucket that already represents an existing non-adjacent bucket increases - Eventually, when the number of generated buckets saturates, it'll be hard for the SP to tell which scalar range (bucket) a particular bit is representing - But this happens smoothly, and learning is never lost since representations never change, only become more blurry --- # Intuitions (cont.) - The bigger the 'n', the less likely bits will be used for many non-adjacent buckets - The bigger the 'w', the more similarity will be attributed to adjacent buckets - The bigger the 'r', the more scalars will be grouped together into buckets --- # Results - RDSE is better than Basic Scalar Encoder, at least for our datasets (Reference: Subutai) - Easier to configure and use - No reason to use Basic Scalar Encoder instead of RDSE anymore (other than as a tool for explaination) - Caveat: RDSE is not an adaptive encoder that learns the statistics of the input and allocates buckets accordingly - Those kinds of modifications are still open for experimentation --- class: center, middle, inverse # Thank you. Questions? .footnote[csurpur@numenta.com]
